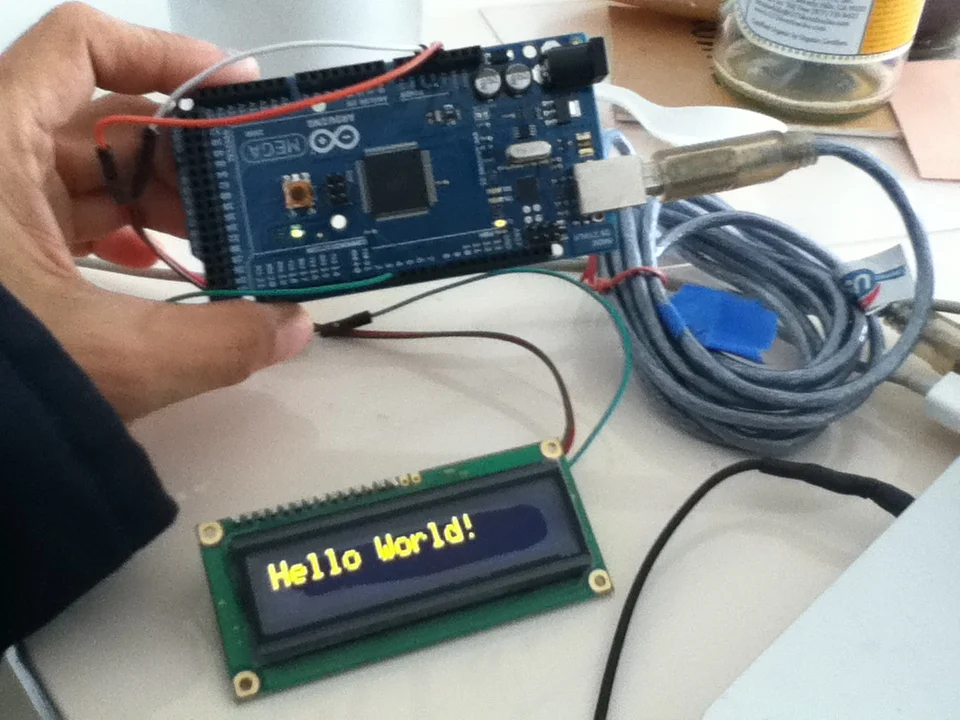

Hello, World!
arduino code from http://seetrontech.blogspot.com/2011/12/arduino-hello-world-for-bpi-216-serial.html :
/*This program uses the updated SoftwareSerial distributed in v1.0 of the Arduino software. Users of earlier versions must download NewSoftSerial. */ #include <SoftwareSerial.h> #define rxPin 255 // Not used, so set to invalid pin # #define txPin 3 // Connect BPI/BPK's SER input to this pin. #define inverted 1 // In setup, 1=inverted, 0=noninverted const char clearScreen[ ] = { 254,1,254,128,0}; const char message[ ] = "Hello World!" ; /* Set up a new serial output using the pin definitions above. Note the argument "inverted," which instructs SoftwareSerial to output BPI/BPK- compatible inverted-TTL serial (like RS-232, but without the +/- voltage swing).*/ SoftwareSerial mySerial =SoftwareSerial(rxPin, txPin, inverted); void setup(){ // define pin mode for tx: digitalWrite(txPin, LOW); // Stop bit state for inverted serial pinMode(txPin, OUTPUT); mySerial.begin(9600);// Set the data rate delay(10);// wait (may not be needed w/ Arduino v1.0) mySerial.print(clearScreen); mySerial.print(message); } void loop() { // ... }
